Top Picture: My Latest Purchase. National Panasonic T - 100 From 1962 / 1963 in almost new Condition.This receiver was sold World Wide in almost all Countries for his good sound... And with his two speakers belonged to the higher segment in portable audio.... Price in 1963 was 355 Euro. Weight inlc. Batt. 4.5 KG
--------------------------------------------------------------------------------------------------------------------------------------------------------
38 uH High Power Rolling Conductor. Made by Siemens / Telefunken Germany 1980's. Build in thick Epoxy and looks still like new. Was connected is a 50 KW Medium Wave TX. (Second Harmonic Trap, weight 10KG)
Home Build Tube Am Radio Receiver 0.15 - 27 MHz. With R&S mechanical 64/1 Dial Section.
10 Kilowatt Philips Automatic Servo Tuned SW Transmitter 1.6 - 30 MHz. For the World Wide International shipping. Build in Huizen (NL)

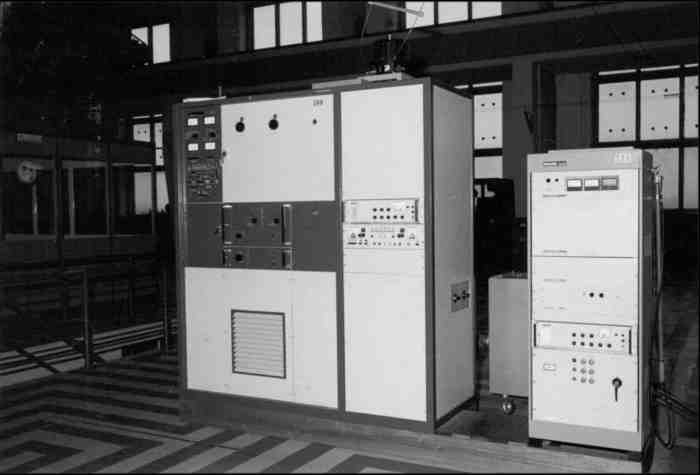

The 10 KW Philips transmitter in the early 60's, as used for Scheveningen radio for (international) shipping. Reception took place in Scheveningen, and broadcasting took place in Katwijk aan Zee. These transmitters were also set up in the Cathedral in Kootwijk on the Veluwe. (photo)..
Philips made very nice Professional HF/Broadcast transmitters in the 1960s. The competition from the German Siemens and Telefunken was clearly present.
Unfortunately, this department is a thing of the past. Philips only makes expensive medical equipment for hospitals.
The HF NXP Chip division was sold to third parties in the USA and other Countries.
Servo part for fast frequency switching. Within 10 seconds on all frequencies from 1.6 - 30 mHz. set automatically by means of servo motors. Unfortunately, the control unit was not included, but with the current techniques for servo control, this can be realized on a Euro printed circuit board.
Home made 5 KiloWatt SW PA Stage for the HF bands 3 - 70+ MHz.
My penultimate design, a 5 KW SW PA with the 3CX2500A3 (JAN) with 81 % HF Efficiency.
25 Watts in............. 300 Watts out
100 Watts in............2 KW + out
150 Watts in............ 3 KW + out
225 watts in............ 5 KW out
300 Watts + in........ 6 KW ++ out
All measurements with 100 % Grid modulation at 1 kHz.. ( 7 KV HV Supply. )
Measured power is Carrier + 3 DB positive (grid) modulation.
Meter sectie voorpaneel.
Used Power tube, Eimac 3CX2500A3 (JAN)
PA tank coil with Disk tuning, for stepless tuning and without switching / sliding contacts.
PA Coil: Disk tuning for stepless and precise adjustment.
Anode RF choke with block C of 30 KV with the 10 KV Vacuum tuning C 20 - 1500 PF
10KVA Power supply. 7 KV / 1.5 Ampere in 19 Inch and carried out on rolls, weight 140 KG.
T520 -2 behind the tank circuit for frequencies below 3 mHz.
Top cover in two parts.
Back: With blower and Hsp terminal and 50 Ohm output.
Front view, still without tuning indication.
Switch panel Hsp. 3 Phase 20 Amp. (400 Volt) and 3 X 16 Amp. for the 230 voltages + wall socket.
